Handy 2-Stroke 63cc Petrol Mini Tiller

Handy 2-Stroke 63cc Petrol Mini Tiller

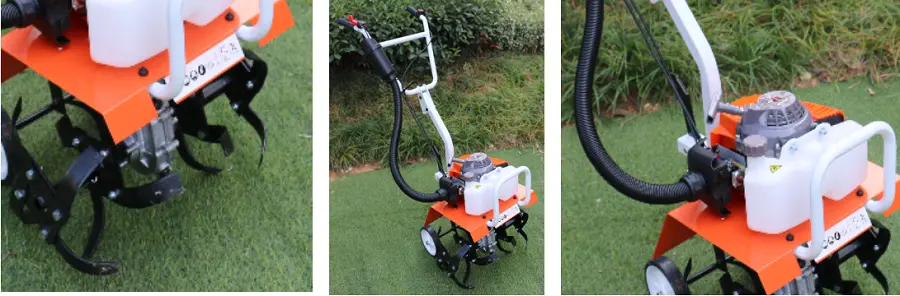

Product Overview

The Handy 2-Stroke 63cc Petrol Mini Tiller from JUSEN represents enterprise-level compact cultivation technology designed for demanding agricultural applications. Highlighting a strong 1E48F 63cc two-stroke motor conveying 3.2kW evaluated control at 8500-9000rpm, this professional-grade tiller weighs fair 32kg whereas keeping up remarkable toughness. Built with premium materials counting plastic, press, aluminum, and metal components, it offers prevalent power-to-weight proportion for proficient soil development. The unit's moderate structure guarantees zero-pressure operation in cruel working conditions, making it culminate for little gardens, raised beds, and limited rural spaces where bigger apparatus cannot access.​​​​​​​

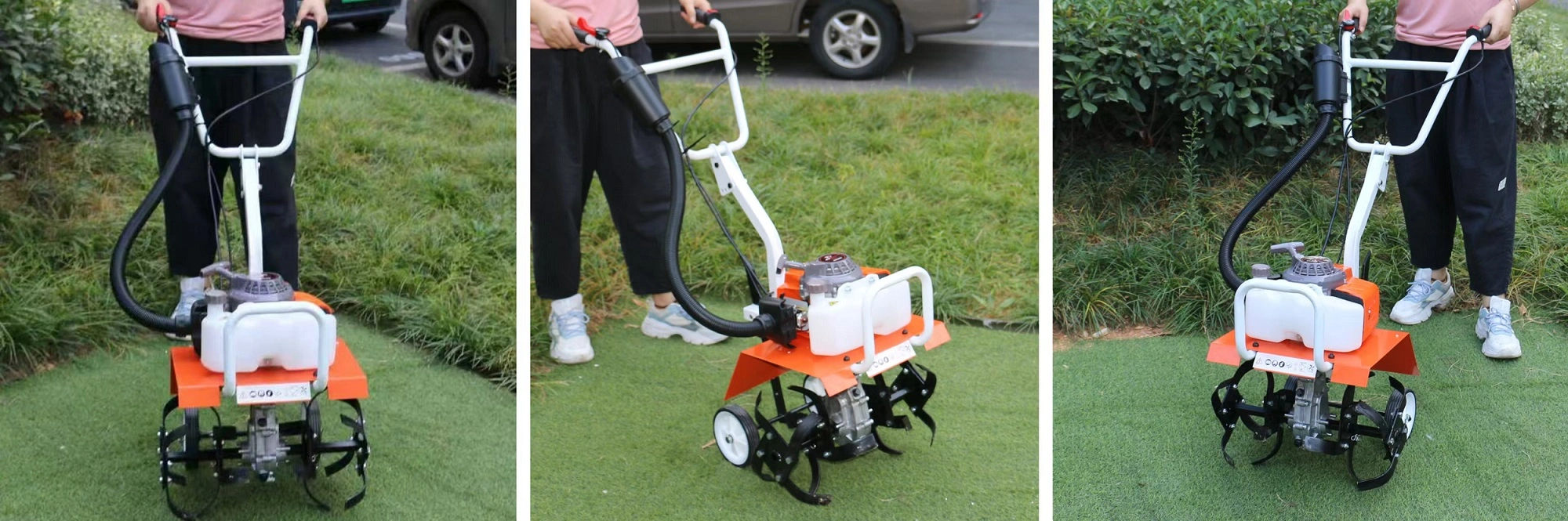

Applications

Professional Farming & Horticulture

The item exceeds expectations in medium-sized plots of 3-10 mu, uneven terraced areas, and inter-row spaces in plantations and tea manors. With a working profundity of 15-25cm and working width of 40-60cm, it handles the total handle of rotating working, trenching, ridging, and weeding.

Precision Landscaping

Landscape contractors rely on this machine for flower bed rejuvenation in complex urban gardens. Its light footprint prevents soil compaction in surrounding turf areas, unlike heavy walk-behind units. The tiller performs effective mechanical weeding between narrow rows in boutique market gardens.

Small-Scale Farming

Perfect for nurseries, vegetable gardens, and greenhouse edges. The high idle speed and stable frequency output provide one-button adaptation for both shallow and deep tillage operations.

Key Features

Powerful Engine Performance

• 1E48F 63cc large-displacement engine with 3.2KW output for heavy-duty tasks
• High torque density significantly exceeds 25-50cc class engines
• Superior sod-breaking capabilities in compacted clay soils

Ergonomic Design

• Lightweight 32kg construction for single-person operation
• Optimized handle dampening reduces Hand-Arm Vibration Syndrome (HAVS) concerns
• Minimalist structure ensures reliable performance in harsh conditions

Advanced Transmission

• Centrifugal clutch engaging at ~2800 RPM
• Worm drive reduction system in cast housing
• 4-tooth hardened steel tines with 300mm max working width

Maintenance Simplicity

• No valve train complexity of 4-stroke engines
• Field repairs and maintenance straightforward for long-term ownership
• Standard fuel mixing ratio for consistent performance

Technical Specifications of Handy 2-Stroke 63cc Petrol Mini Tiller

Model Options

Standard JS-7060 Configuration

Our flagship Handy 2-Stroke 63cc Petrol Mini Tiller model comes equipped with the proven 1E48F engine and standard tine configuration. This version offers the perfect balance of power, weight, and cost-effectiveness for most agricultural applications.

Custom Configurations

JUSEN supports custom configuration manufacturing based on specific customer requirements. We offer OEM services for labels, specifications, and packaging formats to meet diverse market needs.

Operation & Maintenance

Fuel Requirements

Use a 50:1 fuel mixture (20ml of high-quality semi-synthetic 2-stroke oil per 1 liter of petrol). Never use straight petrol as this will cause immediate piston seizure.

Operating Technique

For heavy clay soil, perform a superficial pass first to break the crust, then adjust the drag stake for deeper cultivation. The product provides necessary torque but requires proper technique to prevent gearbox overheating.

Maintenance Schedule

• Check fuel mixture before each use
• Top up gearbox with Lithium-based EP grease every 25 operating hours
• Drain fuel system completely for winter storage
• Regular inspection of centrifugal clutch and transmission components

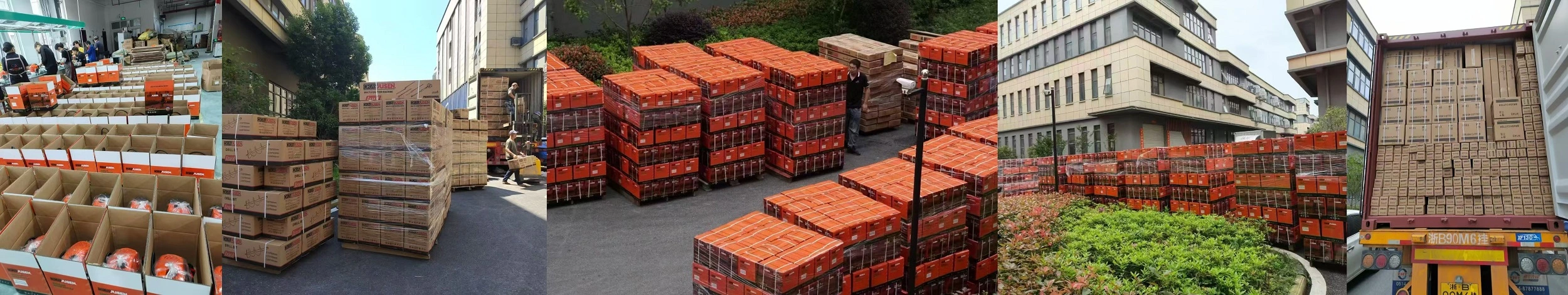

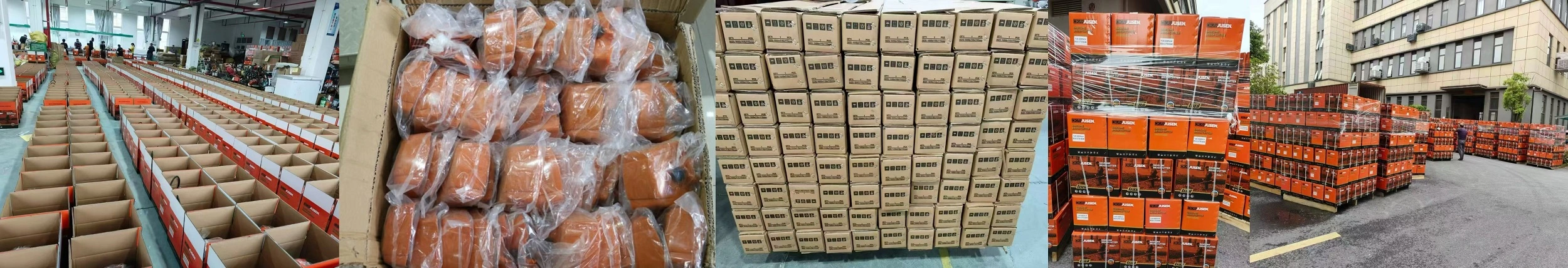

Packaging & Delivery

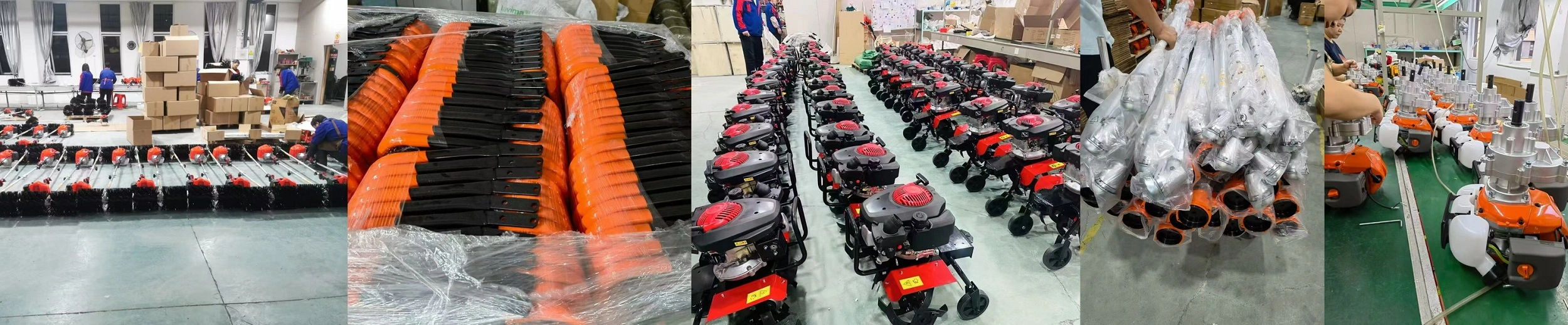

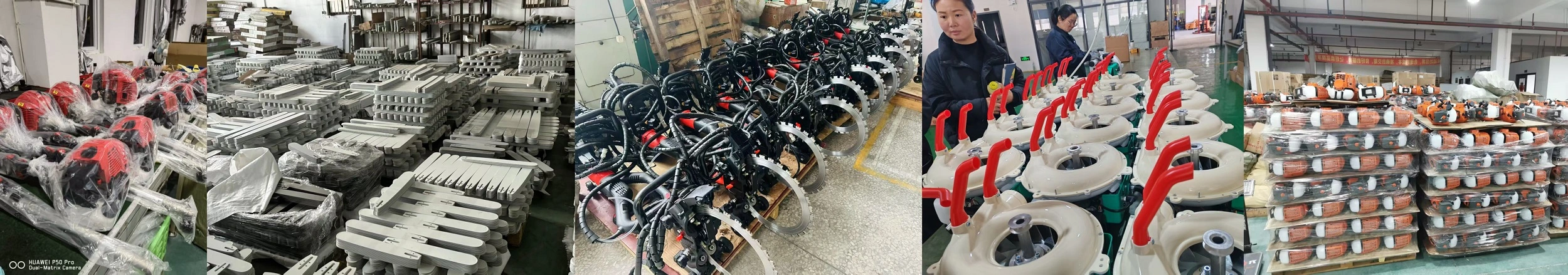

Production & Shipping

• Production cycle: 20-25 business days for standard orders
• Quick shipping available when sufficient stock is on hand
• Custom color box packaging available
• Compact 0.15m³ package dimensions for efficient shipping

Support Services

• 24/7 online consultation from sales and technical teams
• Response within 2 hours for general inquiries
• Sample testing support available for quality verification

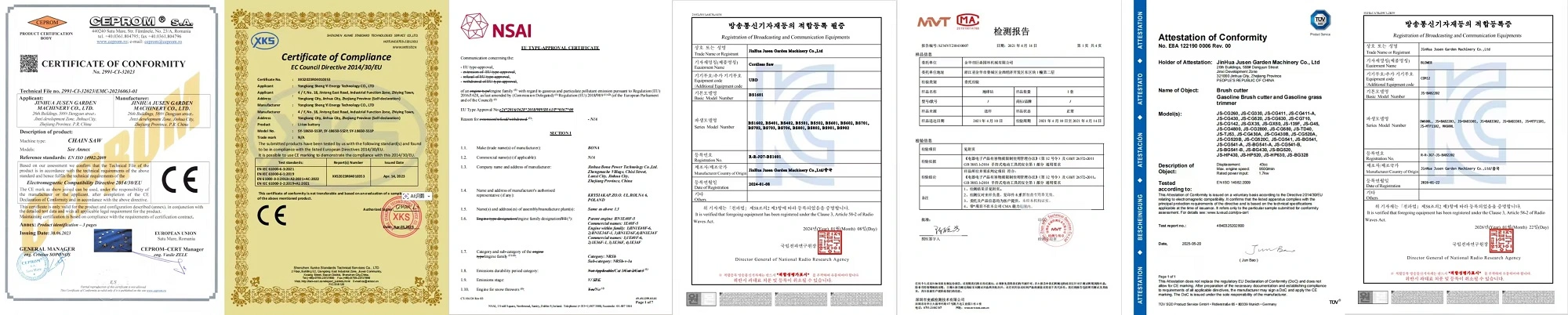

Certification

JUSEN maintains strict compliance with international standards. Our factory operates with a robust quality management system, ensuring consistent, reliable performance and high safety standards across all processes and products.

FAQ

Q: What fuel ratio should I use to prevent engine damage?

A: Use a 50:1 mixture (20ml semi-synthetic 2-stroke oil per liter of petrol). Always consult your manual as some variants may require 40:1.

Q: The engine runs but tines don't rotate. What's wrong?

A: Check if engine RPM is sufficient for centrifugal clutch engagement. Inspect for damaged woodruff key or worn clutch shoes.

Q: How do I store the tiller long-term?

A: Drain the fuel system completely and run the engine until it stalls to consume remaining fuel in carburetor lines.

Q: Can this handle heavy clay soil?

A: Yes, but use proper technique. Make a shallow first pass, then adjust for deeper cultivation on the second pass.
